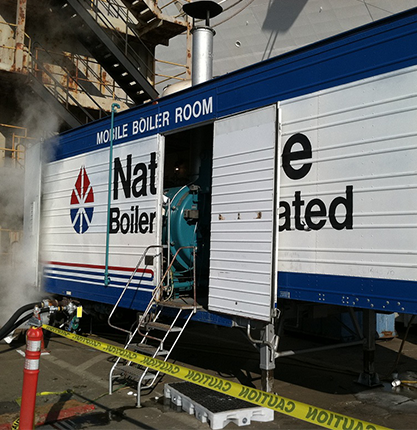

Nationwide Boiler's large fleet of rental boilers includes 100 HP mobile boiler rooms. Designed at 150 psi, these temporary steam plant systems include the following:
- Package Firetube Boiler
- Burner
- Gas Pressure Regulator
- Motor Control Center
- Valve Trim (header, safeties, blowdown, etc)
- Spray-type Deaerator with (2) Feedwater Pumps
- Duplex Water Softener with Brine Tank
- Chemical Feed System
- #2 Oil Pump & Motor
- Blowdown Separator
- Sample Cooler & Sink
- Interior Lighting
- Stack (shipped loose)
All equipment is fully piped and wired, mounted inside of a 30' trailer-mounted van for true rental boiler mobility.
| Steam Capacity | 3,450 lb/hr |
|---|---|
| Steam Temperature | Saturated |
| Design Pressure | 150 psi |
| Operating Range | 50-125 psi |
| Standard Fuel Type | Natural Gas or #2 Oil |
| Boiler Type | Firetube |
Download the full rental boiler specification for additional details.
