Boiler Rentals by Nationwide Boiler

Image Description

Nationwide Boiler's large fleet of rental boilers includes multiple 200 HP ultra-low NOx mobile steam plants. Designed at 250 psi, these temporary steam plant systems include the following:

  • Package Firetube Boiler
  • Ultra Low NOx Burner
  • Gas Pressure Regulator
  • Motor Control Center
  • Valve Trim (header, safeties, blowdown, etc)
  • Spray-type Deaerator with (2) Feedwater Pumps
  • Duplex Water Softener with Brine Tank
  • Chemical Feed System
  • Blowdown Separator
  • Stack (shipped loose)

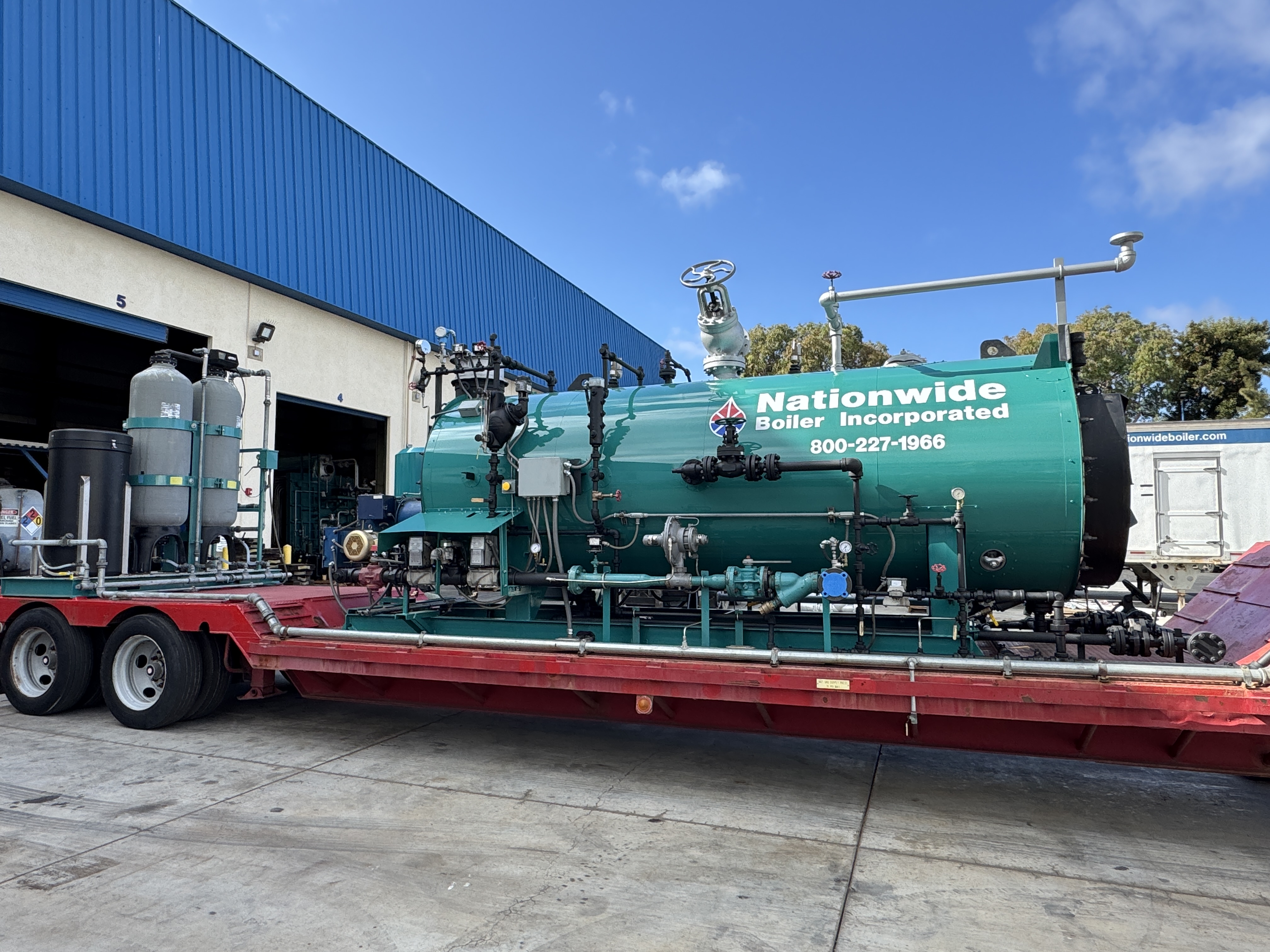

All equipment is fully piped and wired, mounted on a 40' open-trailer for true rental boiler mobility. Plus! These rental boilers are pre-permitted for expedited use in the South Coast Air Quality Management District (SCAQMD) of California.


Steam Capacity 6,900 lb/hr
Steam Temperature Saturated
Design Pressure 250 psi
Operating Range 50-225 psi
Standard Fuel Type Natural Gas
NOx Emissions (natural gas) 9 ppm
Boiler Type Firetube



Download the full rental boiler specification for additional details.
